Honda Rebel 1100 / 1100T Skid Plate
T-Rex Racing Honda Rebel 1100 / 1100T Skid Plate

Alternative Views:
Part Number: N26-21SP
Our Price: $209.95

Quantity in Stock:20

Free Shipping
Availability:: Usually Ships in 1 to 2 Business Days
Qty:

Description

  • Condition: New
  • Special feature: Longer skid plate covering more of the exhaust and water cooler tank. Compatible with our engine guards and center stand
  • Material: Precision CNC machined aircraft grade aluminum
  • No Cut or plastic fairing modifications required
  • Fit Models: Honda
  • 2021 - 2023 Rebel 1100
  • 2023 - 2024 Rebel 1100T
  • Compatible with our engine guards and center stand
  • Fitting Difficulty (1-5): 3 - Average (1 - easy / 5 - Little bit of skill)
  • Fitting Time: 45 - 60 minutes
  • PDF Instruction:
  • Please keep in mind that when you add "any" extra items to your bike that makes it closer to the ground, you can't lean the same way you used to and expect nothing to touch. Enjoy your skid plate!

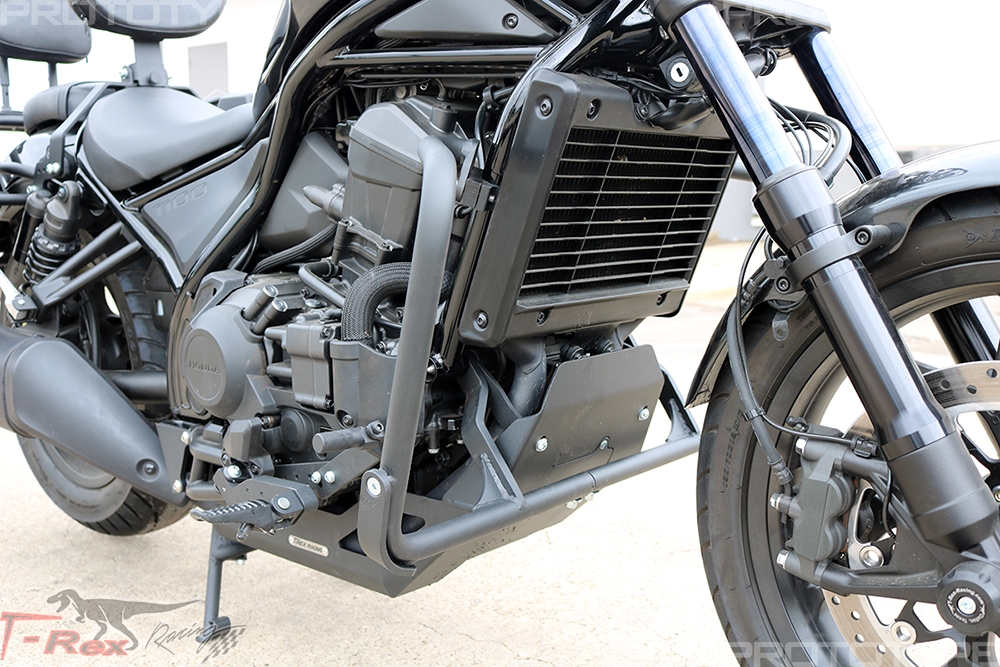

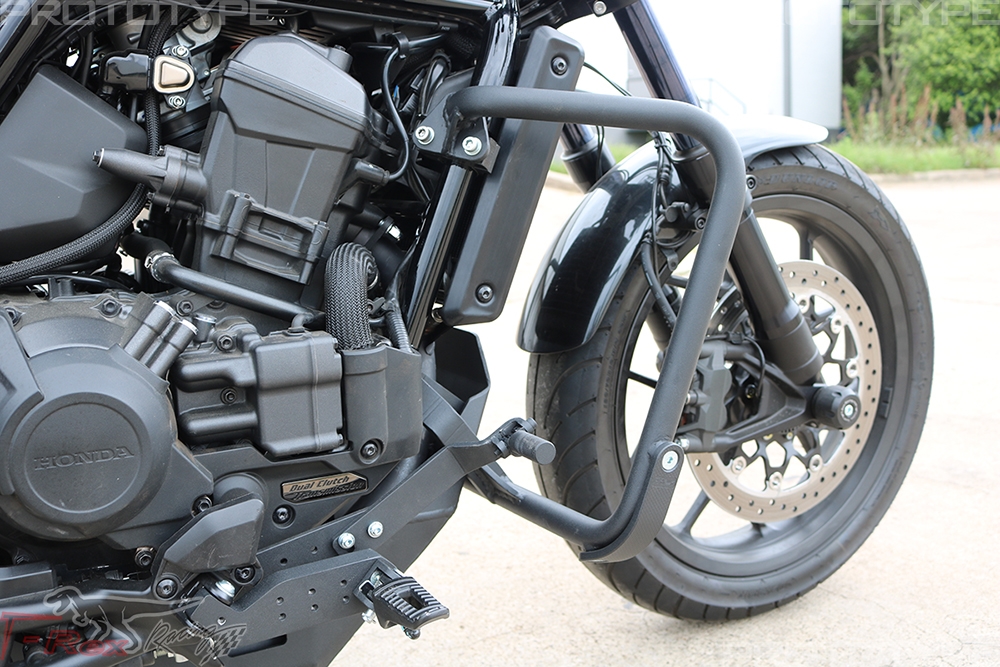

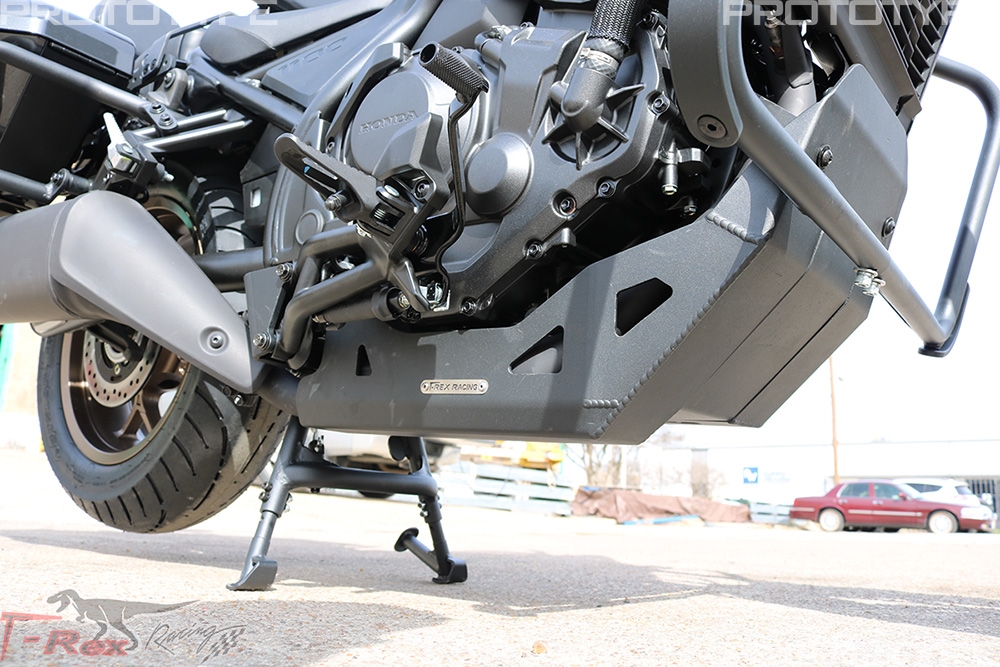

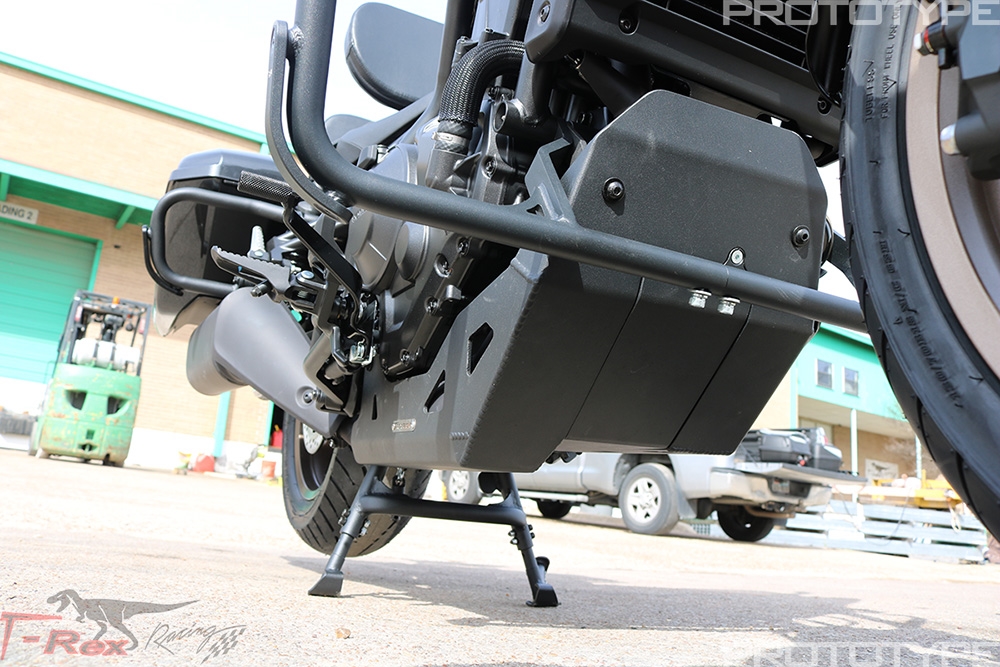

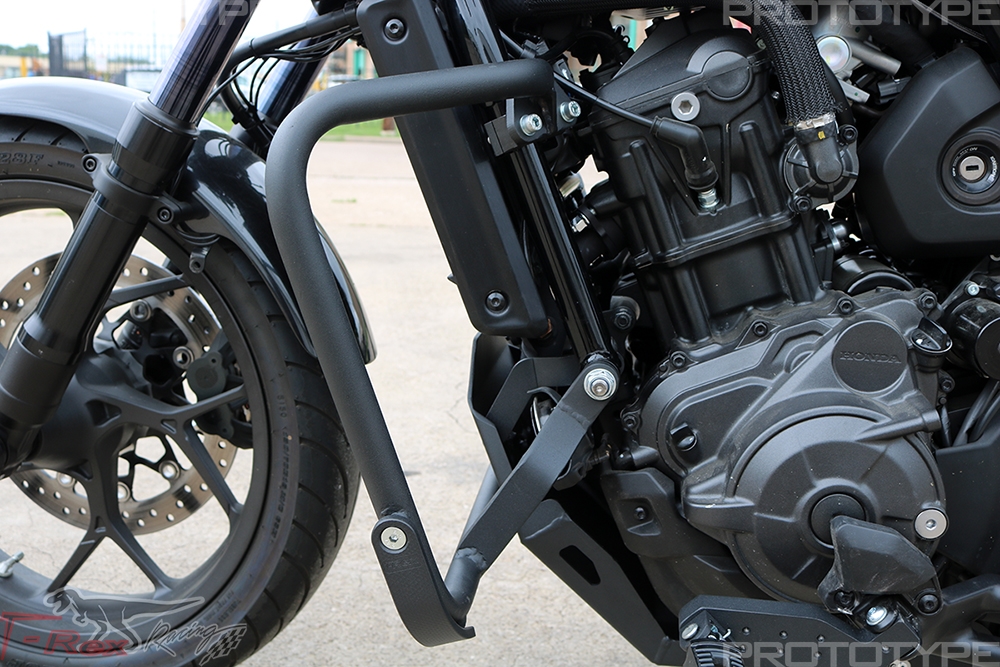

This purchase is for a heavy duty skid plate , designed to minimize damage and protect your bike from dirt, mud, and other debris. The skid plate is CNC cut from a solid 4mm sheet of aircraft grade aluminum. The plate is then tig welded and finished with black powder coating to increase durability. Rest assured that you are getting the best material commercially available.

Why Pick Our Skid Plate?

Durability and Quality

  • 4mm thick aircraft grade aluminum (Solid plate not separate pieces that are riveted/bolted together)
  • CNC cut / bend
  • Tig Welded
  • Finished in durable black powder coating (Plates thickness slightly increases after the powder coating)
  • Covers exhaust and water cooler tank

We understand that riders want protection for both on/off the road. Our skid plates were designed to take the beatings of your everyday riding. Our skid plates are mounted at two locations (front, back). The front brackets mount to the engine mount. The rear brackets uses an 8mm bolt. The mounting locations of a skid plate play a critical role in how much it can minimize damage and protect. We did not want to mount anything on the engine cover or stator as that would more likely cause more problems than prevent. Other skid plates that mount on the covers is trusting the integrity of the plate on 6mm bolts that are connected directly to the engine covers. Major impacts or accident will rip and crack that cover or bolt.

Accessibility and Compatibility

  • Installation Video Available! View and learn about the process before you make your decision.
  • Easy Access to the oil filter with our removable cap! No need to remove the whole skid plate!
  • Easy Access to the bottom oil drainage bolt
    • Skid plate removal is necessary to facilitate oil drainage from both the Rebel 1100's engine oil drain bolts. To re-install skid plate, loosen front 14mm Engine-to-Frame nut to allow front skid plate mounting brackets to rotate freely to engage skid plate bolts. After bolts are threaded, re-tighten and torque everything to spec.
  • Compatible with our engine guards
  • Technical Customer Support - Monday - Friday 9am - 5PM

Peace of Mind

  • 30-day return policy
  • 2 Year Manufacturers Warranty for manufacturing defects
  • Free 2-3 Day Shipping within the 48 contiguous states
