- Condition: New
- Special feature: Reversible stand, extra pin slot
- Size: 1 5/8" in diameter tube
- Thickness: 1/8"
- Material: Carbon steel tubing (grade 2)
- Finishes: Black powder coat

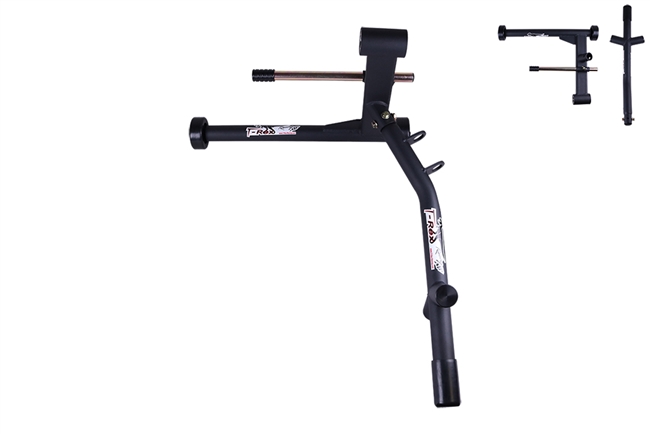

This purchase is for a single sided swing arm stand that comes with the selected pin(s). The upright twin tubing provides unbeatable strength. The threaded rod is inserted through the axle hole to the other side of the wheel. The over-sized washer and the butterfly nut are attached onto the rod to prevent bike from sliding off the stand as the wheel spins. Long handle bar gives extra leverage and can be reversed to forward direction. Ball bearing pins allow the rear wheel spin easily while being lifted. The center wheel-stop rod prevents the rear wheel from spinning during removal. The stand was cleansed in chemical bath, stabilized zinc phosphate coating and finally finished with black electrostatic powder coat to prevent it from the elemental degradation. The stand requires a simple bolt on assembly.
|
|
Pin #
|
Pin Size (mm)
|
Compatibility
|
|
Set
|
Pin 1
|
25.7
|
Ducati 748 / 848 / 916 / 996 / 998 / Monster 796 / S4R / 1100 / Multistrada 1000 / Hypermotard 1100
|
|
Pin 2
|
29.7
|
|
|
Pin 3
|
28.3
|
Honda VFR800 / Hawk GT ( NT650)
|
|
Set
|
Pin 4
|
27.7
|
1997 - 2006 Triumph T509 Speed Triple / Daytona T595 / Daytona T955i / T955i Speed Triple / 1050 Speed Triple
|
|
Pin 5
|
29.7
|
|
|
Pin 6
|
42.5
|
MV Agusta F3 / F4 / F4RR / Brutale / Turismo Veloce
|
|
|
Pin 7
|
40.5
|
Ducati 1098 / 1198 / S / 1199 / 1299 Panigale / Streetfighter S / Diavel / Multistrada 1200 |
|
|
Pin 8
|
53.5
|
BMW R nineT / K1300S / K1200S / K1200R / R 12 / R 12 nineT / R1200S / R1200R / R1200GS / HP2 Enduro
|
|
Set
|
Pin 12
|
27.2
|
2007 - ON Triumph Speed Triple 1050 / Daytona T955i
|
|
Pin 13
|
28.7
|
|
Set
|
Pin 14
|
27.7
|
KTM 1290 Superduke / GT / R
|
|
Pin 15
|
42.7
|
|
|
Pin 16
|
24.8
|
Kawasaki H2 / H2R / SX
|
Please note that these are just the few bikes that we have confirmed ourselves. If you do not see your bike listed, measure your swing arm axle and choose the size slightly smaller than that. Do not select the same size pin as it will not fit! Let us know if the closest option is still not available.
