2013 - 2015 Honda CBR500R No Cut Frame Sliders
T-Rex Racing 2013 - 2015 Honda CBR500R No Cut Frame Sliders

Alternative Views:
Part Number: N40-13
Our Price: $144.95


Free Shipping
Availability:: Usually Ships in 1 to 2 Business Days


Puck Text Color*:

Qty:
Description

  • Condition: New
  • Material: UHMW-PE (ultra high molecular weight polyethylene), anodized aircraft grade aluminum
  • Special feature: Brackets are designed NOT to rotate in a low side. Aircraft grade aluminum inserts to prolong puck life
  • NO CUT or plastic fairing modifications required
  • Fit models: Honda
  • 2013 - 2015 CBR500R

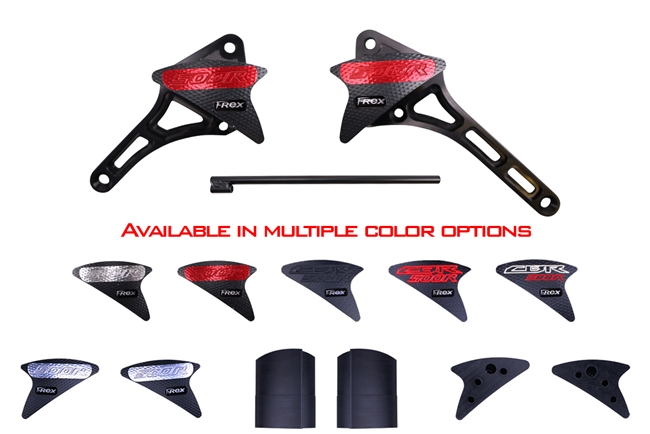

This purchase is for a set of frame sliders for the above bike model. The sliders feature a new design of a complete solid puck without a hollowed-out center. This increases the strength and contact surface to about 30%. The bracket is bolted to the engine mount and the slider puck is bolted onto it. We use 10mm engine mount bolts only for our frame sliders. They are the largest and strongest bolts on your bike. Our competitors use 6 mm case cover bolts. These bolts are small. They were not designed to bear the load. As the result, they tend to snap off and crack the engine block in case of a low-side. The brackets have two attachment points preventing them from rotating in the event of a low side. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9(177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material commercially available.
